Semi automatic LCD polarizing stick film machine
Device Description
Place the cleaned panel on the platform,the polarizer and panel were manually positioned and fixed by measuring the edge distance,next, the centrifugal protective film of polarizer is manually separated and placed in the material collection device,press the start button,bonding the glass substrate through the cylinder descending roller,the lead screw pushes the roller finally make polarizer accurately and quickly stick on the corresponding LCD substrate.
Equipment use
This product is suitable for the polarizing film peeling process in the surface scratch repair of various liquid crystal panels, and after that make the new polarizer stick to the glass substrate process.It is widely used in middle/large-size LCD screen and display panel production 、 maintenance; such as LCD TV, advertising machine.。

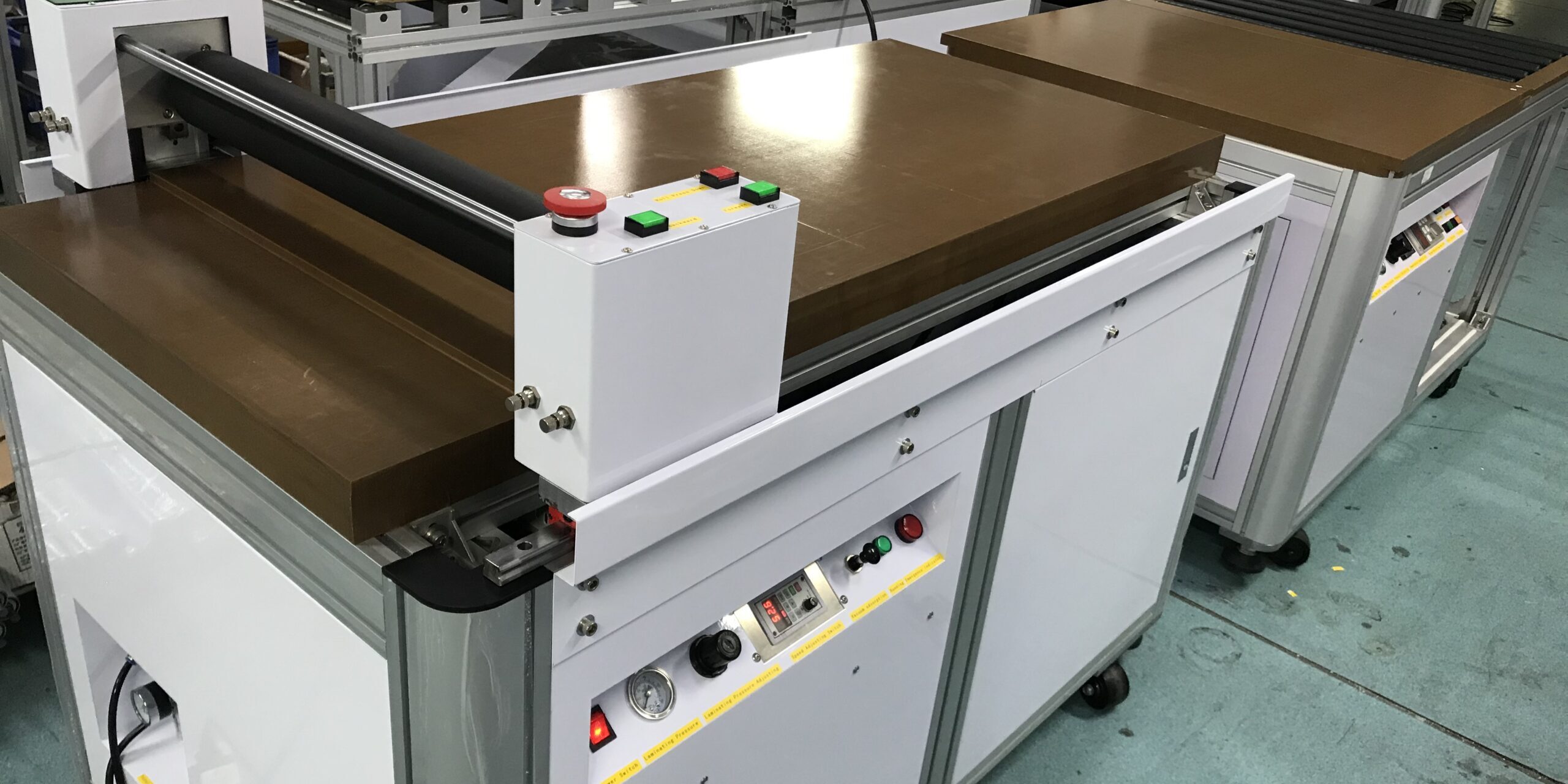

Semi automatic LCD screen polarizing tearing film machine
Working principle
The principle of polarizing film tearing machine is to manually tear diagonal opening of 8-10cm.Fix it on the tearing film roller of device with adhesive tape. Start high-power inverter motor,peel off the polarizer on the LCD screen.
Equipment use
Polarizer film tearing machine refers to various kinds of LCD assembly and rework process, process equipment for stripping off polarizers of liquid crystal display panels with surface scratches and other undesirable products, especially suitable for thin, large LCD panel polarizer lift-off process.
Equipment Specifications
Suitable for one-time operation of LCD panel within 46 inches,above 46 inches need more operations
POL film tearing machine, with the following size specifications
14-19“ 14-32“ 14-46“ 14-65“
POL film laminating machine, with the following size specifications
14-32“ 14-65“ 14-86“ 14-100“
Different styles at different prices
LCD POL film tearing machine,
LCD POL film laminating machine
