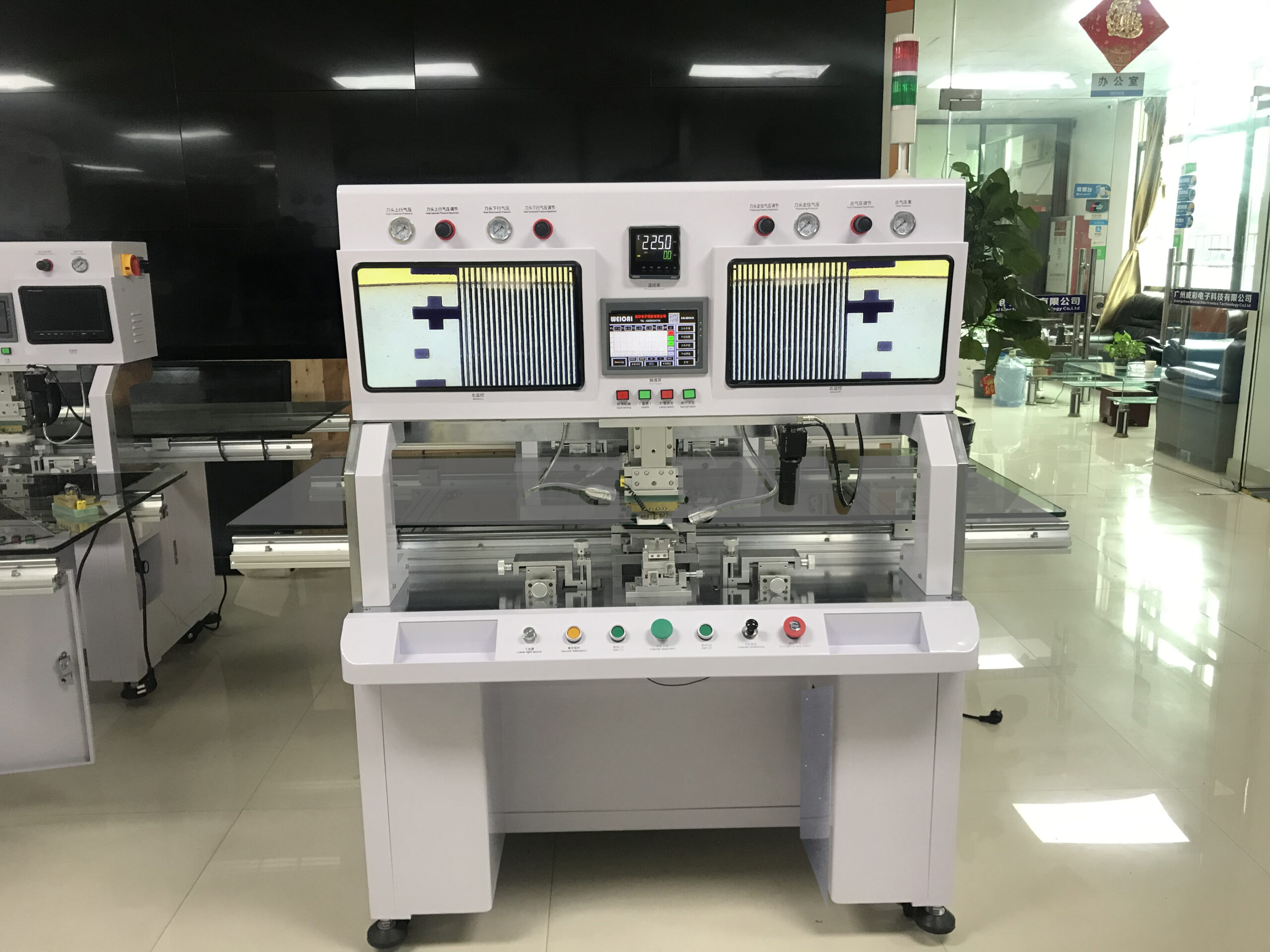

LCD screen maintenance equipment, bonding machine, screen repair machine, hot press machine
Device Uses：This product is used in a variety of FPC, COF, TAB and LCD Panel and PCB combination bonding, is reflected in a variety of sizes LCD vertical, horizontal, vertical band, horizontal belt, black belt, black, colored thread, ribbon , multi-line, black, black and white, vertical half display,horizontal half breakdown maintenance.
Easy to operate, worry free after-sales service, exquisite craftsmanship, efficient and precise, never shifting, simple and easy to learn, with long-term support for LCD screen technology
| Device Features | Single head ,single pneumatic device, single temperature control |
| Multi-speed pulse source design to meet the power requirements of diversified product pressure | |
| Applicable LCD panel specifications | 14″-65″(Platform expandable) |
| Applicable LCD panel thickness | 0.3MM-1.1MM[Single glass] |
| Panel type | TFT |
| Bonding IC number | One/PANEL |
| Bonding direction | X or Y Unidirection |
| Bonding head size | Replaceable blade according to IC specifications (The original machine is equipped (50X1.4X10). |
| Equipment process time | TFT，3.8S/chip |
| Production beat | TAB，100pcs/H |
| Bonding accuracy | ±1.5µm (support 4K) |
| Highest positioning accuracy setting | ±0.5μm |
| Equipment requirements work environment | Clean, dust-free, clean room |
| Supply pressure | 0.1~0.7Mpa Dry air source |
| Power supply | AC 220V±10%，50HZ，3500W |
| Pneumatic device | Air TAC Original precision cylinder |
| Pressure system | Pressure system parallel bar structure eliminates the weight of the indenter,pressure minimum accuracy can up to 0.1 KG,pressure components are using SMC precision components. |
| Heating method | Pulse (rapid heating/cooling and auxiliary cooling) |
| Temperature Control System | Brand:TOKY |
| Adjustable temperature rise curve with high precision PID auto-tuning | |
| The peak temperature : within +/-1degrees Celsius | |
| Room temperature time to 180 degrees the response time within 2-3 seconds | |
| Hot pressing head | Material: Titanium alloy |
| Metal properties:SUS440C | |
| Origin: United States | |
| Plane precision (hot pressing surface) :0.001mm | |
| Plane thickness 0.5 (keep 3 times grinding) | |
| Thermocouple Type | K type Original US OMEGA wire |
| Industrial control unit / programme | Display control C8X16T- PLC |
| Panasonic Image Processing System | |
| Touch unit | Display control Samkoon dual-core touch screen |
| Image unit
| COF counterpoint: Down counterpoint (Optical Path: Lens> Quartz> ITO Electrode> COF) |
| PCB alignment:None (optional installation) | |
| Number of lens: 2 | |
| Microscope: 200-300 continuous zoom | |
| COF Display: 19-inch HD | |
| PCB front camera:None (optional installation) | |
| COF trimming unit | Origin: China |
| Rail type: U-rail | |
| Accuracy:0.01 | |
| Adjustable direction:X/Y/R | |
| R stroke: coarse adjustment 360 degrees, fine adjustment +/- 5 degrees | |
| COF fixture | COF mechanical clamping type ,Z-direction tilt radius micrometer fine-tuning |
| Lens spinner unit | Control mode: X / Y / Z micrometer control |
| Focus Adjustment: Manually adjust the focus | |
| Silicone / Teflon | Manual switching position |
| LCD stage (platform) | Manual slide movement,self-contained vacuum adsorption device |
| Bonding head alignment | The cylinder can be set to stop in any position in the upper and lower directions |
| Control method | Touch screen + button operation |
| Parameter setting | Can store multiple sets of hot pressing parameters as needed |
| Rated voltage | AC 180-220V |
| Peak power | 400-1100W (can support 68X1.4X10 wide bonding head) |
