LCD Bonding Machine Repair It is an indispensable maintenance tool for televisions
Product specification
Device name Hot Press Machine
Device Model CR-880DH-19M
Device Description Screen repair equipment, LCD repair equipment, COF/TAB bonding equipment, etc.
Device Uses This product is used in a variety of FPC, COF, TAB and LCD Panel and PCB combination bonding, is reflected in a variety of sizes LCD vertical, horizontal, vertical band, horizontal belt, black belt, black, colored thread, ribbon , multi-line, black, black and white, vertical half display,horizontal half breakdown maintenance.
Device Features Double bonding heads,dual pneumatic device, dual temperature control
Multi-speed pulse source design to meet the power requirements of diversified product pressure
Applicable LCD panel specifications 15″-65″(Platform expandable)
Applicable LCD panel thickness 0.3MM-1.1MM[Single glass]
Panel type TFT
Bonding IC number One/PANEL
Bonding direction X or Y Unidirection
Bonding head size The original left head is equipped with 50X1.2X10MM and the right head is equipped with 50X2.0X10MM(The size of the bonding head can be changed according to the IC specifications)
Equipment process time TFT，3.8S/chip
Production beat TAB，100pcs/H
Bonding accuracy ±1.5µm (support 4K)
Highest positioning accuracy setting ±0.5μm
Equipment requirements work environment Clean, dust-free, clean room
Supply pressure 0.1~0.7Mpa Dry air source
Power supply AC 220V±10%，50HZ，3500W
Pneumatic device Air TAC Original precision cylinder
Pressure system Pressure system parallel bar structure eliminates the weight of the indenter,pressure minimum accuracy can up to 0.1 KG,pressure components are using SMC precision components.
Heating method Pulse (rapid heating/cooling and auxiliary cooling)
Temperature Control System Brand:Omron
Adjustable temperature rise curve with high precision PID auto-tuning
The peak temperature : within +/-1degrees Celsius
Room temperature time to 180 degrees the response time within 2-3 seconds
Hot pressing head Material: Titanium alloy
Metal properties:SUS440C
Origin: United States
Plane precision (hot pressing surface) :0.001mm
Plane thickness 0.5 (keep 3 times grinding)
Thermocouple Type K type Original US OMEGA wire
Industrial control unit / programme Display control C8X16T- PLC
Panasonic Image Processing System
Touch unit Display control Samkoon dual-core touch screen
Image unit
COF counterpoint: Down counterpoint
(Optical Path: Lens> Quartz> ITO Electrode> COF)
PCB alignment: Have
Number of lens: 3
Microscope: 30-120 continuous zoom
COF display: 18.5 inches HD
PCB alignment display: Can be switched directly in COF alignment display
COF trimming unit Origin: China
Rail type: U-rail
Accuracy:0.01
Adjustable direction:X/Y/R
R stroke: coarse adjustment 360 degrees, fine adjustment +/- 5 degrees
COF fixture COF mechanical clamping type ,Z-direction tilt radius micrometer fine-tuning
Lens spinner unit Control mode: X / Y / Z micrometer control
Focus Adjustment: Manually adjust the focus
Silicone / Teflon Manual switching position
LCD stage (platform) Manual sliding movement, self-contained vacuum adsorption device
Bonding head alignment The cylinder can be set to stop in any position in the upper and lower directions
Control method Touch screen + button operation
Parameter setting Can store multiple sets of hot pressing parameters as needed
Rated voltage AC 180-220V
Peak power 400-1100W (can support 68X1.4X10 wide bonding head)
Maximum power 1100W
Actual power 580W
Body size 1800X1200x1520mm(L*W*H)
Net weight of equipment 380KG
Number of packages 2
Equipment packaging Wooden boxes, non-logs
(material is glued board, no fumigation is required for export)
Package size and gross weight 1240X840X1680mm（L*W*H）368KG
1920X240X960mm（L*W*H） 120KG

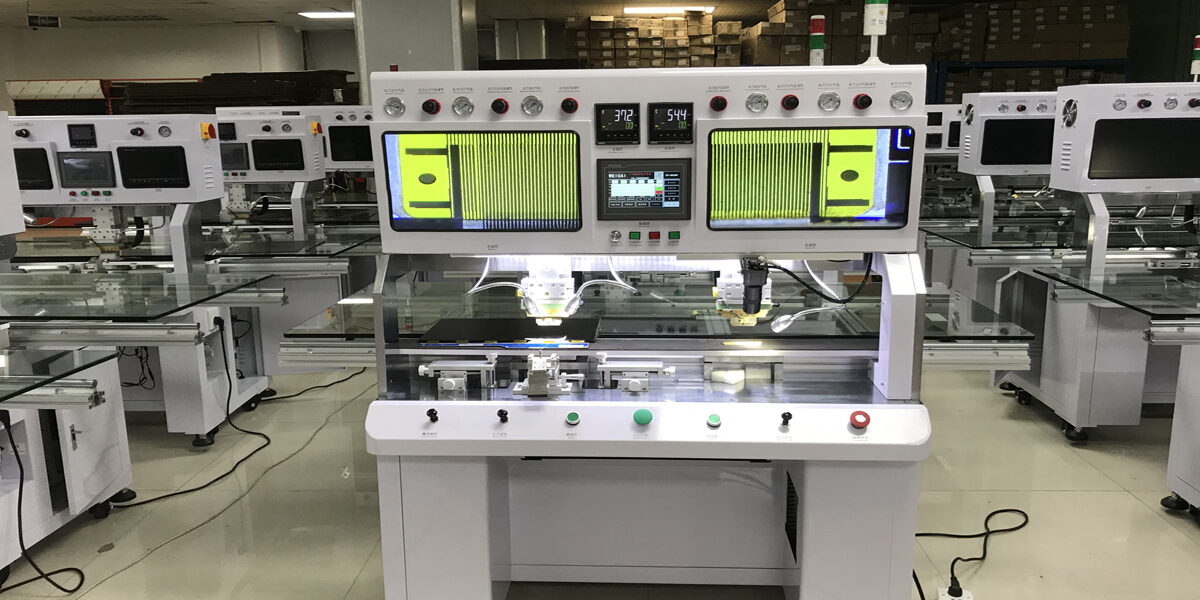

The following picture is the device after packaged.
