Multi wavelength UV laser machine CR-512UV New equipment launched Mobile phone repair laser machine

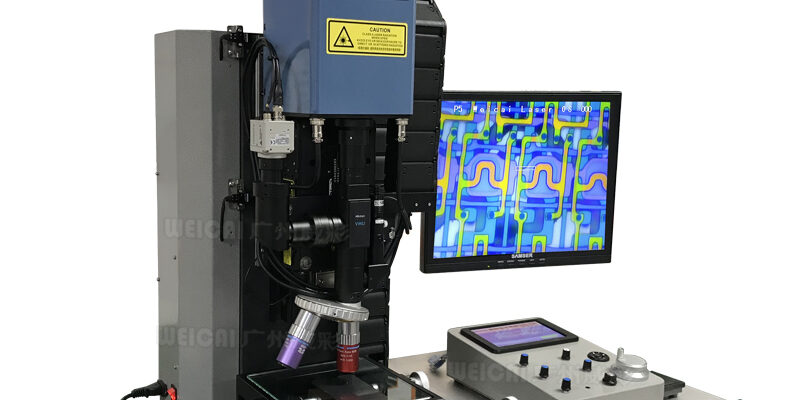

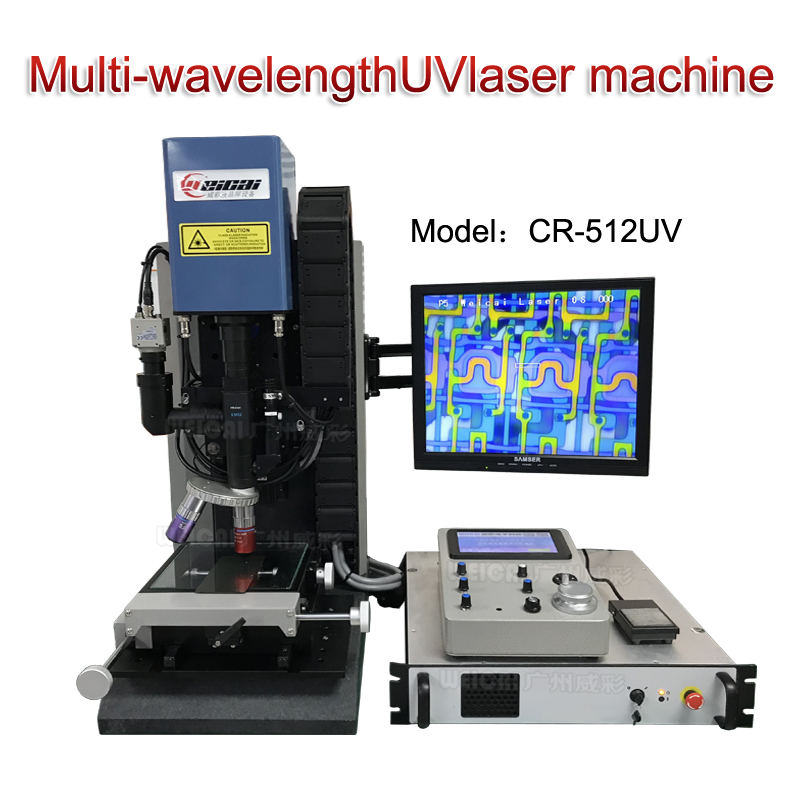

Multi wavelength UV laser machine

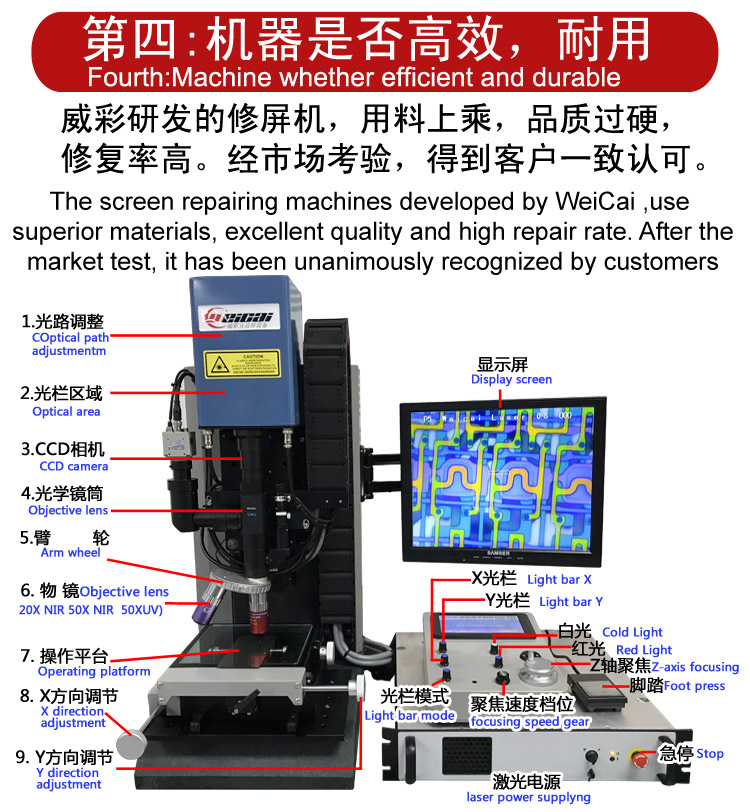

This device is equipped with an American brand quantum solid-state laser with a frequency of up to 100HZ, offering multiple wavelengths including 1574, 1064, 532, 355, 266, and 213. The whole machine is equipped with a UV mirror cavity, a UV 50x objective lens, and a 50x infrared lens. It can be used for both UV wire stripping and infrared routine maintenance functions.
Product application
The device mainly cuts and trims the micrometer sized components of the semiconductor circuit inside the liquid crystal screen, especially the passivation layer (silicon oxide/nitride) and metal interconnects, through a high-frequency (100Hz) pulsed laser beam under mirror imaging to achieve circuit maintenance. The device can use a dial design digital display to adjust the laser pulse energy and interface selectable wavelength for different target materials.
Scope of Equipment Usage
Scope 1: (PC, laptop, digital, car display and other products)
Defects in the internal wiring of the LCD screen can cause bright spots, vertical lines, and horizontal lines
Black or gray screens caused by cross lines, half lines, large and small head lines, or built-in GOA structures in LCD screens
Coarse mesh, shaky screen, uneven horizontal display
The fault phenomenon caused by a series of internal circuit problems on the screen substrate.
Scope 2: TFT/OLED mobile phone screens, wearable products, etc Abnormal vertical lines, no display, and other adverse fault phenomena that occur.
