We are a manufacturer of LCD repair equipment, with our own processing machinery, installation team, technical training department, and professional after-sales team, which is worth your choice.

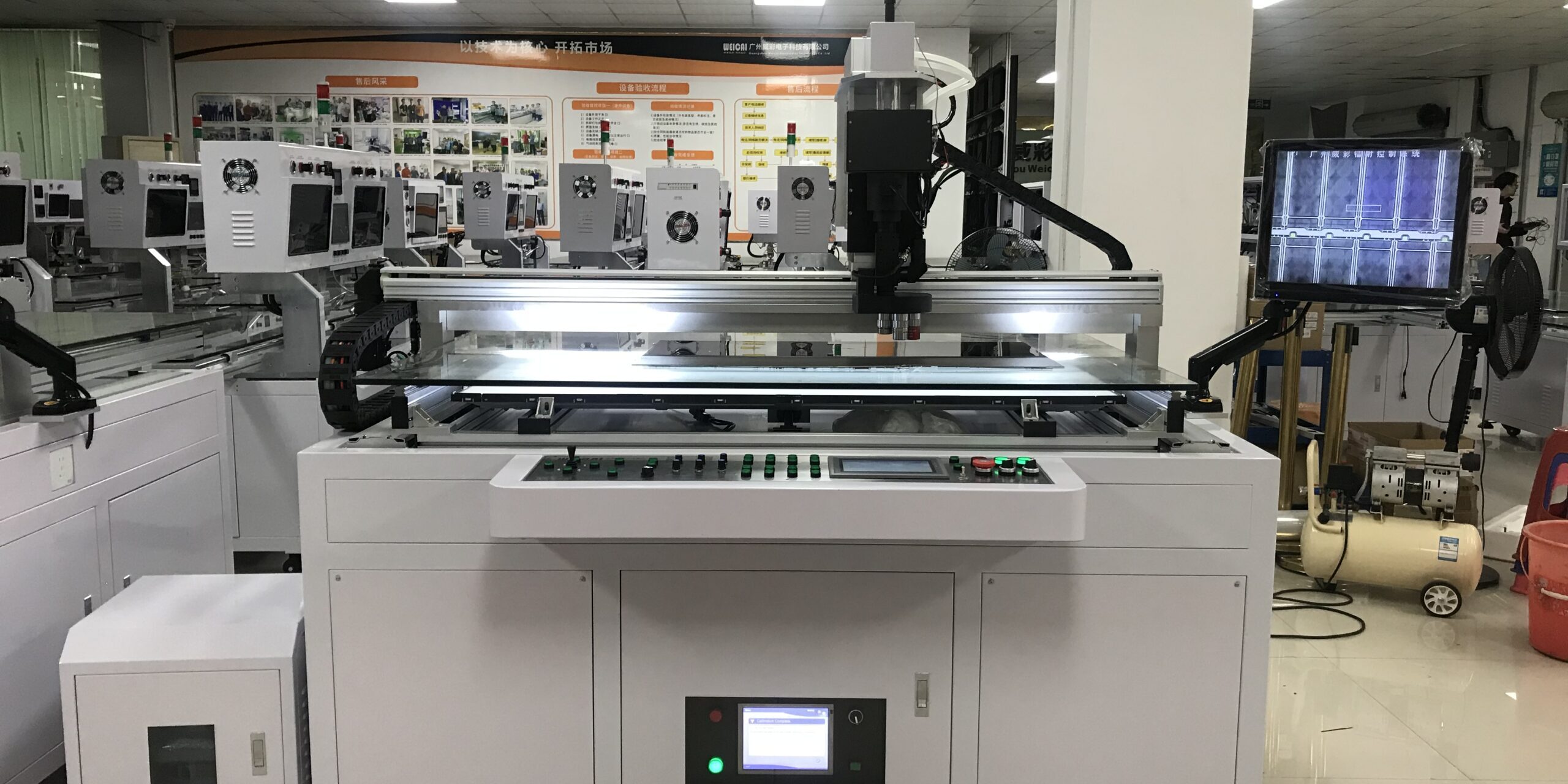

LCD laser machine is used for products such as TV, PC, touch teaching machine, splicing, notebook, digital, car displays, etc.) LCD internal circuit defects can cause bright spots, vertical lines, horizontal lines, cross lines, half lines, large lines and small head lines in the LCD, or a series of fault phenomena caused by the built-in GOA structure of the LCD screen, such as black screen, gray screen, coarse screen, screen shaking, uneven horizontal display, and internal circuit problems of the screen substrate. 2. TFT/OLED mobile phone screens have abnormal vertical lines, no display, and other defects.
Model # CR-512DQ-10
Laser current<=20A Laser mode Multi mode
Laser voltage AC 220V 50HZ output energy 1064nm@100-500mJ 532nm@50-250mJ
Machine power less than=1000 W, energy stability less than=3% @ 1064nm/532nm
Laser lamp F7-85-155 operates intermittently, with a maximum continuous working time of 50 minutes and a minimum stop time of 10 minutes
Wavelength 1064 nautical miles, 532 nautical miles, cooled by water cooling method
Repetition frequency 1-10 Hz, water flow rate 5 liters per minute
Pulse length 8-15NS, water pressure less than=0.1Pa
Q adjustment method, active Q, water tank capacity of 6 liters
Overall specifications: 203Cm-190Cm-175Cm
X-axis stroke 800MM Y-axis stroke 1400MM
X manual movement stroke 800MM Z-axis focus on stroke 230MM
Packaging specifications 1900-1800-1800MM Weight 900kg
