Equipment Features
CR-815SH-19M is a high precision TAB bonding equipment,It is a kind of equipment which is specially developed for the maintenance of Individual appliance repair;The cylinder structure using a special buffer to eliminate dead weight、pressure accurate、high output precision ; Pressure dual control,convenient to meet the two kinds of different pressure needs; Bonding head adjustment convenient, single direction independent adjustment, quick and convenient; Design bonding area LCD vacuum adsorption function,Configure separate vacuum pump to save pressure loss、no noise; Ensure the bonding product adsorbed firmly, connect using aviation plug connector, safe and convenient, solve the traditional glass platform can not absorb product caused position shift .
Application areas
Suitable for LCD panel manufacturers,glass bonding Factory,LCD professional repair market.
Equipment Specifications
Semi-automatic ACF Bonidng Machine
CR-815SH-19M
Applicable LCD panel specifications14″-65″
Applicable LCD panel thickness0.3MM-1.1MM[Single glass]
Bonding IC numberOne/PANEL
Bind directionX or Y Unidirection
Bonding IC tool bit sizeReplaceable blade according to IC specifications (The original machine is equipped (50X1.5X10)
Production BeatsTAB，60pcs/H (Loading – Alignment – Hot pressing)
Bonding AccuracyWithin ± 1.5μm (Supports high density and high resolution / 4K screen)
Highest positioning accuracy setting±0.5μ m (Currently domestic the highest index)
Power SupplyAC 220V±10% 50HZ 3500W
Cylinder DeviceHorizontal bar, original cylinder
Pressure SystemsPressure components are made of precision pneumatic components
Heating Type Pulse heating,multi-segment temperature zone, suitable for variety of bonding temperature requirements (Rapid heating / cooling and auxiliary cooling function)
Brand：WEICAI
Temperature Control System Built-in PID temperature controller, temperature self-tuning function module
The peak temperature : within +/- 3 degrees Celsius
Room temperature time to 180 degrees the response time within 2-3 seconds
Use American titanium alloy material , high-precision grinding machine processing, effectively protect the blade flatness
Hot pressing head Plane precision (hot pressing surface) :0.001mm
Plane thickness 0.5 (keep 3 times grinding)
Use American titanium alloy material , high-precision grinding machine processing, effectively protect the blade flatness
Plane precision (hot pressing surface) :0.001mm
Thermocouple Type K type Original US OMEGA wire
Program control Display control C8X8T- PLC
Touch unit Samkoon Samkoon dual-core touch screen
COF counterpoint: Down counterpoint
(Optical Path: Lens> Quartz> ITO Electrode> COF)
Microscope: 200-300 continuous zoom
Image unit
COF display screen: 19 inches HD
Vacuum adsorption: Have
Origin: China
COF trimming unit Adjustable direction: X / Y / R
R stroke: adjust 360 degrees, fine tune +/- 5 degrees.
Large stroke: can up to 12.5mm, and accuracy up to 0.01
COF fixture COF mechanical clamping type
Lens spinner unit Control mode: X / Y / Z micrometer control
Focus Adjustment: Manually adjust the focus
LCD stage (platform)Fixed platform
Operation modeTouch screen + button operation
Parameter settingCan according to need to store multiple sets hot pressing parameters
Rated voltage180-220 (customizable 110V)
Peak power 800W (can support 68X1.4X10 wide bonding head)
Body size1800X850x1460mm(L*W*H)
Net weight of equipment250KG
Package size①920X920X1660 mm(L*W*H) 240KG
②1920X500X960 mm(L*W*H) 110KG

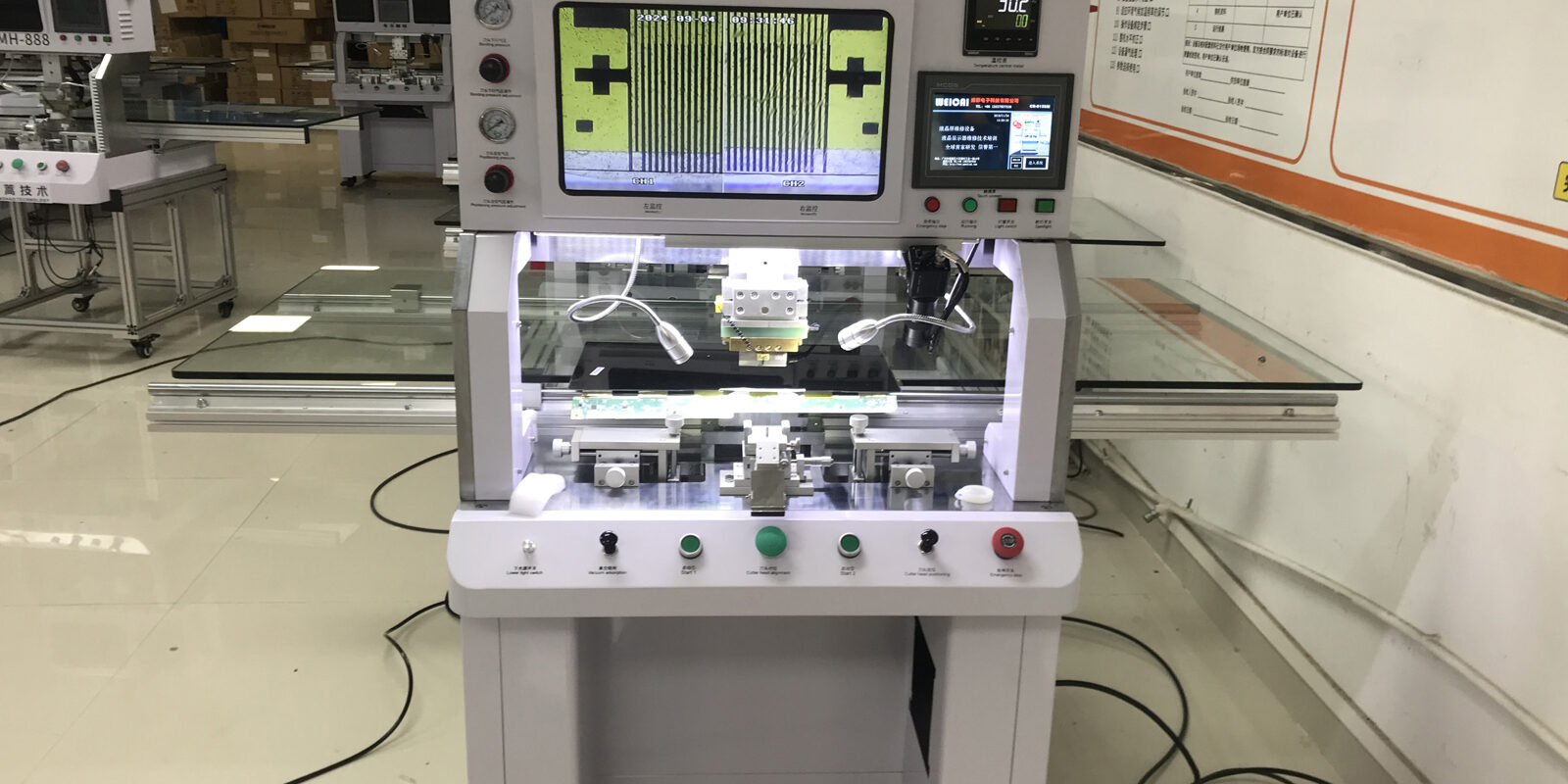

The following picture is the device after packaged.
