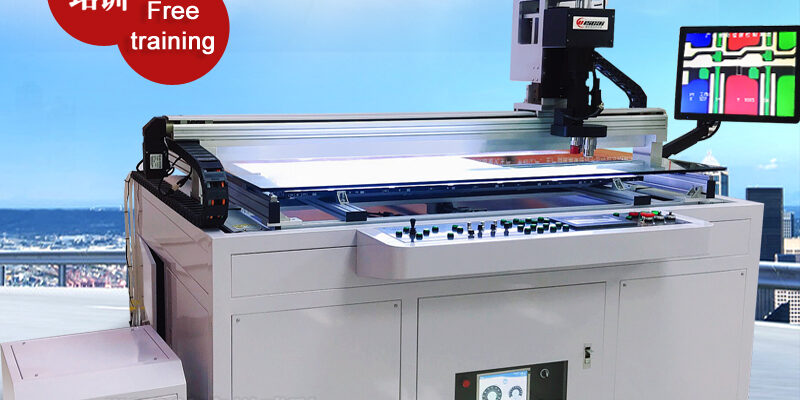

LCD screen laser repair machine
Product application
Mainly in the mirror through the high frequency pulse laser beam of the LCD internal semiconductor circuit of the micron size of cutting and trim especially passivation layer (silicon oxide / nitride) and metal interconnection to achieve the role of line maintenance, the device can adjust the laser pulse energy and wavelength for different target materials.
Equipment use
It is mainly caused by the internal line defects of the LCD screen, including LCD screen highlights, vertical line, horizontal line, cross line, half line, black screen, gray screen, screen thickness, picture jitter, uneven display, and a series of screen and internal line problems of the screen substrate.
- Laser type: single channel modulation Q (crystal 6MM) semiconductor laser ND-YAG, specific parameters are as follows:
| Laser current | ＜=20A | lasing mode | Multi-mode |
| Laser voltage | AC220V 50HZ | output energy | 1064nm@100-500mJ 532nm@50-250mJ |
| The power of the machine | Less than = 1,000 W | energy stability | Less than =3%@1064nm / 532nm |
| Laser lamp | F7-85-155 | operate mode | Work intermittently, continuous working time maximum 50min and stop minimum 10min |
| wavelength | 1064NM 532NM | cooling-down method | hydrocooling |
| repeat frequency rate | 1-20HZ | Water flow | 5L/Min |
| pulse length | 8-15NS | water pressure | Less than =0.1Pa |
| Tune Q way | Active Q | Water tank capacity | 6L |
The shock absorber system
- Form of shock absorber: the vibration transmitted by 4 air bags
- Natural frequency (vertical / horizontal): 2~2.3 Hz (Equipment level: B)
supply electricity
- AC 220 V ± 10%, 50 HZ / 60HZ 20A power supply connector M6 terminal table
Ground wire JIS grade 1,8 mm sq
